Building an ADS-B Flight Tracker with Oracle 23ai and Python

Introduction

I recently built a local web application that captures aircraft data from my Flightradar24 ADS-B receiver and stores it in an Oracle database. As someone who works with Oracle databases professionally but admittedly struggles with Python coding, this project was both challenging and rewarding. In this post, I’ll walk you through the entire journey – from the initial concept to the working application, including all the Oracle errors I encountered and fixed along the way. I will also add that this whole process took less than an hour!

**Author’s note. I also asked Claude to write this blog post, so the majority of the content was created by Claude. You’ll probably note some inconsistencies, but they are minor. For example, the Oracle listener is running on port 1522, not 1521, but you get the picture…

Update: I noticed a number of things that were missing or incorrect.. Active flights weren’t showing up because of a timezone window vs “active time window” discrepancy, call sign data wasn’t there all the time, and I added aircraft type to the page. Looks a lot better now. Still under 2 hours to get to this point.

The Initial Concept

I have a Raspberry Pi running Flightradar24’s ADS-B receiver on my local network (192.168.10.139). This receiver picks up ADS-B transponder signals from aircraft flying overhead and feeds that data to Flightradar24. The receiver exposes the data on port 30003 in BaseStation format – a simple text-based protocol that streams aircraft position reports in real-time.

My goal was simple: capture this data, store it in an Oracle database, and build a web interface to view current aircraft and historical flight data.

Technology Stack

Database: Oracle 23ai Free running in Docker (container name: ora23c)
Backend: Python 3 with the oracledb library
Web Framework: Flask
ADS-B Data Source: Flightradar24 receiver on Raspberry Pi (port 30003)

Phase 1: Database Design

Being an Oracle database person, I would have started with the schema design, however I wanted to see how far Claude would be able to generate this by itself. As such, I had no real input into the design, so when in this post you see me indicate “I needed to ….’, it’s really Claude that did it. I just watched and gave feedback on what didn’t work. I also ran SQL Developer to run the database user and schema creation scripts:

AIRCRAFT – Store unique aircraft by ICAO address
FLIGHTS – Track flight sessions
POSITIONS – Store position reports (latitude, longitude, altitude, speed)

Here’s the complete schema:


-- ADS-B Flight Tracker Database Schema for Oracle XE
-- Run this as your application user
-- Table to store unique aircraft
CREATE TABLE aircraft (
    icao_address VARCHAR2(6) PRIMARY KEY,
    registration VARCHAR2(10),
    aircraft_type VARCHAR2(50),
    first_seen TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    last_seen TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);
-- Table to store individual flights (track by callsign/session)
CREATE TABLE flights (
    flight_id NUMBER GENERATED ALWAYS AS IDENTITY PRIMARY KEY,
    icao_address VARCHAR2(6) NOT NULL,
    callsign VARCHAR2(10),
    first_contact TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    last_contact TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    CONSTRAINT fk_aircraft FOREIGN KEY (icao_address)
        REFERENCES aircraft(icao_address)
);
-- Table to store position reports (this will be the largest table)
CREATE TABLE positions (
    position_id NUMBER GENERATED ALWAYS AS IDENTITY PRIMARY KEY,
    flight_id NUMBER NOT NULL,
    icao_address VARCHAR2(6) NOT NULL,
    msg_type VARCHAR2(10),
    transmission_type NUMBER,
    reported_time TIMESTAMP,
    received_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    callsign VARCHAR2(10),
    altitude NUMBER,
    ground_speed NUMBER,
    track NUMBER,
    latitude NUMBER(10,6),
    longitude NUMBER(11,6),
    vertical_rate NUMBER,
    squawk VARCHAR2(4),
    alert NUMBER(1),
    emergency NUMBER(1),
    spi NUMBER(1),
    is_on_ground NUMBER(1),
    CONSTRAINT fk_flight FOREIGN KEY (flight_id)
        REFERENCES flights(flight_id)
);
-- Indexes for common queries
CREATE INDEX idx_positions_flight ON positions(flight_id);
CREATE INDEX idx_positions_time ON positions(received_time);
CREATE INDEX idx_positions_icao ON positions(icao_address);
CREATE INDEX idx_flights_icao ON flights(icao_address);
CREATE INDEX idx_flights_callsign ON flights(callsign);
CREATE INDEX idx_aircraft_lastseen ON aircraft(last_seen);
-- Procedure to clean up old data (optional - run periodically)
CREATE OR REPLACE PROCEDURE cleanup_old_positions(p_days_to_keep NUMBER DEFAULT 30) AS
BEGIN
    DELETE FROM positions
    WHERE received_time < SYSDATE - p_days_to_keep;

    COMMIT;

    DBMS_OUTPUT.PUT_LINE('Cleanup complete. Deleted positions older than ' || p_days_to_keep || ' days.');
END;
/
COMMIT;



I also created two views to make querying easier.

Phase 2: The First Oracle Error – ORA-00932 in Views

Claude’s initial view definitions included ORDER BY clauses, which seemed logical at the time. However, Oracle doesn’t allow ORDER BY in view definitions. Here was Claude’s first attempt at the flight statistics view:


-- WRONG - This causes ORA-00932
CREATE OR REPLACE VIEW v_flight_stats AS
SELECT
    f.flight_id,
    f.icao_address,
    f.callsign,
    COUNT(p.position_id) AS position_count,
    MIN(p.received_time) AS first_position,
    MAX(p.received_time) AS last_position,
    MAX(p.altitude) AS max_altitude,
    AVG(p.ground_speed) AS avg_speed
FROM flights f
LEFT JOIN positions p ON f.flight_id = p.flight_id
GROUP BY f.flight_id, f.icao_address, f.callsign
ORDER BY last_position DESC;  -- This is the problem!



The fix: Remove the ORDER BY clause and apply ordering when querying the view:


-- CORRECT
CREATE OR REPLACE VIEW v_flight_stats AS
SELECT
    f.flight_id,
    f.icao_address,
    f.callsign,
    COUNT(p.position_id) AS position_count,
    MIN(p.received_time) AS first_position,
    MAX(p.received_time) AS last_position,
    MAX(p.altitude) AS max_altitude,
    ROUND(AVG(p.ground_speed), 0) AS avg_speed
FROM flights f
LEFT JOIN positions p ON f.flight_id = p.flight_id
GROUP BY f.flight_id, f.icao_address, f.callsign;



Phase 3: The INTERVAL Nightmare

The next challenge was with INTERVAL syntax. I wanted to filter for aircraft seen in the last 30 minutes. Claude’s first attempt used what seemed like standard SQL:


-- WRONG - Causes ORA-00932: expression is of data type NUMBER,
-- which is incompatible with expected data type DATE UNIT
WHERE p.received_time > SYSDATE - INTERVAL '30' MINUTE

Oracle 23ai doesn’t like this syntax. After some research, Claude found the correct approach using NUMTODSINTERVAL:


-- CORRECT
WHERE p.received_time > SYSDATE - NUMTODSINTERVAL(30, 'MINUTE')

Phase 4: The INTERVAL Arithmetic Problem

But wait, there was another INTERVAL issue! In Claude’s view to calculate “minutes ago,” Claude tried to do simple arithmetic:


-- WRONG - Can't multiply INTERVAL types
ROUND((SYSDATE - p.received_time) * 24 * 60, 1) AS minutes_ago

The problem is that when you subtract two TIMESTAMP values in Oracle, you get an INTERVAL data type, not a NUMBER. You can’t multiply an INTERVAL directly.

The solution: Use EXTRACT() to pull out the components and convert them to numbers:


-- CORRECT
ROUND(EXTRACT(DAY FROM (SYSDATE - p.received_time)) * 24 * 60 +
      EXTRACT(HOUR FROM (SYSDATE - p.received_time)) * 60 +
      EXTRACT(MINUTE FROM (SYSDATE - p.received_time)), 1) AS minutes_ago

Here’s the complete working view:


-- View to get latest positions for active aircraft
CREATE OR REPLACE VIEW v_current_aircraft AS
SELECT
    a.icao_address,
    a.registration,
    a.aircraft_type,
    f.callsign,
    p.altitude,
    p.ground_speed,
    p.track,
    p.latitude,
    p.longitude,
    p.received_time,
    ROUND(EXTRACT(DAY FROM (SYSDATE - p.received_time)) * 24 * 60 +
          EXTRACT(HOUR FROM (SYSDATE - p.received_time)) * 60 +
          EXTRACT(MINUTE FROM (SYSDATE - p.received_time)), 1) AS minutes_ago
FROM aircraft a
JOIN flights f ON a.icao_address = f.icao_address
JOIN positions p ON f.flight_id = p.flight_id
WHERE p.position_id IN (
    SELECT MAX(position_id)
    FROM positions
    GROUP BY flight_id
)
AND p.received_time > SYSDATE - NUMTODSINTERVAL(30, 'MINUTE');



Phase 5: Python Data Collector

With the database schema working, Claude moved to Python. The collector needs to:

Connect to the ADS-B receiver on port 30003
Parse the BaseStation format messages
Store data in Oracle database

Here’s the complete data collector script:


#!/usr/bin/env python3
"""
ADS-B Data Collector for Flightradar24 Receiver
Connects to BaseStation format feed (port 30003) and stores data in Oracle DB
"""
import socket
import oracledb
from datetime import datetime
import time
import sys
from collections import defaultdict
# Configuration
ADSB_HOST = '192.168.10.139'
ADSB_PORT = 30003
# Oracle Database Configuration - UPDATE THESE
DB_USER = 'adsb_user'
DB_PASSWORD = 'your_password'
DB_DSN = 'localhost:1521/FREEPDB1'  # For Oracle 23ai Free in Docker
# Track active flights to avoid creating duplicates
active_flights = {}  # key: icao_address, value: flight_id
def connect_to_database():
    """Connect to Oracle database"""
    try:
        connection = oracledb.connect(
            user=DB_USER,
            password=DB_PASSWORD,
            dsn=DB_DSN
        )
        print(f"Connected to Oracle Database: {DB_DSN}")
        return connection
    except Exception as e:
        print(f"Database connection failed: {e}")
        sys.exit(1)
def ensure_aircraft_exists(cursor, icao_address):
    """Make sure aircraft exists in database, create if not"""
    cursor.execute(
        "SELECT icao_address FROM aircraft WHERE icao_address = :icao",
        icao=icao_address
    )
    if cursor.fetchone() is None:
        cursor.execute(
            "INSERT INTO aircraft (icao_address) VALUES (:icao)",
            icao=icao_address
        )
    else:
        # Update last_seen timestamp
        cursor.execute(
            "UPDATE aircraft SET last_seen = CURRENT_TIMESTAMP WHERE icao_address = :icao",
            icao=icao_address
        )
def get_or_create_flight(cursor, icao_address, callsign):
    """Get existing flight_id or create new flight"""
    # Check if we have an active flight for this aircraft
    if icao_address in active_flights:
        flight_id = active_flights[icao_address]
        # Update last_contact
        cursor.execute(
            "UPDATE flights SET last_contact = CURRENT_TIMESTAMP WHERE flight_id = :fid",
            fid=flight_id
        )
        return flight_id

    # Create new flight and get the generated flight_id
    flight_id_var = cursor.var(int)
    cursor.execute(
        """INSERT INTO flights (icao_address, callsign)
           VALUES (:icao, :call)
           RETURNING flight_id INTO :fid""",
        icao=icao_address,
        call=callsign if callsign else None,
        fid=flight_id_var
    )
    flight_id = flight_id_var.getvalue()[0]
    active_flights[icao_address] = flight_id
    return flight_id
def parse_basestation_message(line):
    """Parse BaseStation format message from port 30003"""
    fields = line.strip().split(',')

    if len(fields) < 22:
        return None

    msg_type = fields[0]

    # We're mainly interested in MSG types (ADS-B messages)
    if msg_type != 'MSG':
        return None

    data = {
        'msg_type': msg_type,
        'transmission_type': int(fields[1]) if fields[1] else None,
        'icao_address': fields[4].strip() if fields[4] else None,
        'callsign': fields[10].strip() if fields[10] else None,
        'altitude': int(fields[11]) if fields[11] else None,
        'ground_speed': int(fields[12]) if fields[12] else None,
        'track': int(fields[13]) if fields[13] else None,
        'latitude': float(fields[14]) if fields[14] else None,
        'longitude': float(fields[15]) if fields[15] else None,
        'vertical_rate': int(fields[16]) if fields[16] else None,
        'squawk': fields[17].strip() if fields[17] else None,
        'alert': int(fields[18]) if fields[18] else None,
        'emergency': int(fields[19]) if fields[19] else None,
        'spi': int(fields[20]) if fields[20] else None,
        'is_on_ground': int(fields[21]) if fields[21] else None,
    }

    # Parse timestamp if available
    if fields[6] and fields[7]:
        try:
            date_str = fields[6]
            time_str = fields[7]
            data['reported_time'] = datetime.strptime(
                f"{date_str} {time_str}",
                "%Y/%m/%d %H:%M:%S.%f"
            )
        except:
            data['reported_time'] = None
    else:
        data['reported_time'] = None

    return data
def store_position(cursor, data):
    """Store position data in Oracle database"""
    if not data or not data['icao_address']:
        return

    try:
        # Ensure aircraft exists
        ensure_aircraft_exists(cursor, data['icao_address'])

        # Get or create flight
        flight_id = get_or_create_flight(cursor, data['icao_address'], data['callsign'])

        # Insert position
        cursor.execute(
            """INSERT INTO positions (
                flight_id, icao_address, msg_type, transmission_type,
                reported_time, callsign, altitude, ground_speed, track,
                latitude, longitude, vertical_rate, squawk,
                alert, emergency, spi, is_on_ground
            ) VALUES (
                :fid, :icao, :msg, :trans,
                :rtime, :call, :alt, :speed, :track,
                :lat, :lon, :vrate, :squawk,
                :alert, :emerg, :spi, :ground
            )""",
            fid=flight_id,
            icao=data['icao_address'],
            msg=data['msg_type'],
            trans=data['transmission_type'],
            rtime=data['reported_time'],
            call=data['callsign'],
            alt=data['altitude'],
            speed=data['ground_speed'],
            track=data['track'],
            lat=data['latitude'],
            lon=data['longitude'],
            vrate=data['vertical_rate'],
            squawk=data['squawk'],
            alert=data['alert'],
            emerg=data['emergency'],
            spi=data['spi'],
            ground=data['is_on_ground']
        )

    except Exception as e:
        print(f"Error storing position: {e}")
        raise
def main():
    """Main collector loop"""
    print("ADS-B Data Collector starting...")
    print(f"Connecting to {ADSB_HOST}:{ADSB_PORT}")

    # Connect to database
    db_conn = connect_to_database()
    cursor = db_conn.cursor()

    # Statistics
    message_count = 0
    last_commit_time = time.time()
    commit_interval = 10  # Commit every 10 seconds

    while True:
        try:
            # Connect to ADS-B feed
            sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
            sock.connect((ADSB_HOST, ADSB_PORT))
            print(f"Connected to ADS-B feed at {ADSB_HOST}:{ADSB_PORT}")

            buffer = ""

            while True:
                data = sock.recv(4096).decode('utf-8', errors='ignore')
                if not data:
                    print("Connection closed by remote host")
                    break

                buffer += data

                # Process complete lines
                while '\n' in buffer:
                    line, buffer = buffer.split('\n', 1)

                    # Parse and store message
                    parsed = parse_basestation_message(line)
                    if parsed:
                        store_position(cursor, parsed)
                        message_count += 1

                        # Print progress
                        if message_count % 100 == 0:
                            print(f"Processed {message_count} messages...")

                # Commit periodically
                current_time = time.time()
                if current_time - last_commit_time > commit_interval:
                    db_conn.commit()
                    last_commit_time = current_time
                    print(f"Committed {message_count} messages to database")

            sock.close()

        except KeyboardInterrupt:
            print("\nShutting down...")
            db_conn.commit()
            cursor.close()
            db_conn.close()
            sys.exit(0)

        except Exception as e:
            print(f"Error: {e}")
            print("Reconnecting in 5 seconds...")
            time.sleep(5)
if __name__ == '__main__':
    main()



Phase 6: The getvalue() Error

When I first ran the collector, I got this error:

Error storing position: 'Cursor' object has no attribute 'getvalue'

The issue was in how Claude was retrieving the auto-generated flight_id from the INSERT statement. The newer oracledbpackage handles bind variables differently than the old cx_Oracle library.

Wrong approach:


cursor.execute(
    """INSERT INTO flights (icao_address, callsign)
       VALUES (:icao, :call)
       RETURNING flight_id INTO :fid""",
    icao=icao_address,
    call=callsign if callsign else None,
    fid=cursor.var(int)
)
flight_id = cursor.getvalue(0)[0]  # This doesn't work!



Correct approach:


# Create the variable first and store it
flight_id_var = cursor.var(int)
cursor.execute(
    """INSERT INTO flights (icao_address, callsign)
       VALUES (:icao, :call)
       RETURNING flight_id INTO :fid""",
    icao=icao_address,
    call=callsign if callsign else None,
    fid=flight_id_var
)
# Call getvalue() on the variable, not the cursor
flight_id = flight_id_var.getvalue()[0]



Phase 7: Flask Web Application

With data flowing into the database, I needed a way to view it. Here’s the Flask web application that Claude generated:


#!/usr/bin/env python3
"""
Flask Web Application for ADS-B Flight Tracker
Displays aircraft data from Oracle database
"""
from flask import Flask, render_template_string, jsonify
import oracledb
from datetime import datetime
app = Flask(__name__)
# Oracle Database Configuration - UPDATE THESE
DB_USER = 'adsb_user'
DB_PASSWORD = 'your_password'
DB_DSN = 'localhost:1521/FREEPDB1'  # For Oracle 23ai Free in Docker
def get_db_connection():
    """Create database connection"""
    return oracledb.connect(
        user=DB_USER,
        password=DB_PASSWORD,
        dsn=DB_DSN
    )
# HTML Template
HTML_TEMPLATE = """
<!DOCTYPE html>
<html>
<head>
    <title>ADS-B Flight Tracker</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <style>
        body {
            font-family: Arial, sans-serif;
            margin: 0;
            padding: 20px;
            background-color: #f5f5f5;
        }
        .container {
            max-width: 1400px;
            margin: 0 auto;
            background-color: white;
            padding: 20px;
            border-radius: 8px;
            box-shadow: 0 2px 4px rgba(0,0,0,0.1);
        }
        h1 {
            color: #333;
            border-bottom: 3px solid #4CAF50;
            padding-bottom: 10px;
        }
        .stats {
            display: grid;
            grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
            gap: 15px;
            margin: 20px 0;
        }
        .stat-box {
            background-color: #4CAF50;
            color: white;
            padding: 20px;
            border-radius: 5px;
            text-align: center;
        }
        .stat-box h3 {
            margin: 0;
            font-size: 2em;
        }
        .stat-box p {
            margin: 5px 0 0 0;
            opacity: 0.9;
        }
        table {
            width: 100%;
            border-collapse: collapse;
            margin-top: 20px;
        }
        th {
            background-color: #4CAF50;
            color: white;
            padding: 12px;
            text-align: left;
            position: sticky;
            top: 0;
        }
        td {
            padding: 10px;
            border-bottom: 1px solid #ddd;
        }
        tr:hover {
            background-color: #f5f5f5;
        }
        .refresh-info {
            color: #666;
            font-size: 0.9em;
            margin-top: 10px;
        }
        .active {
            color: #4CAF50;
            font-weight: bold;
        }
        .altitude {
            text-align: right;
        }
        .speed {
            text-align: right;
        }
        button {
            background-color: #4CAF50;
            color: white;
            padding: 10px 20px;
            border: none;
            border-radius: 4px;
            cursor: pointer;
            font-size: 16px;
            margin: 10px 5px;
        }
        button:hover {
            background-color: #45a049;
        }
        .nav {
            margin: 20px 0;
        }
    </style>
</head>
<body>
    <div class="container">
        <h1>✈️ ADS-B Flight Tracker</h1>

        <div class="nav">
            <button onclick="location.href='/'">Current Aircraft</button>
            <button onclick="location.href='/history'">Flight History</button>
            <button onclick="location.href='/stats'">Statistics</button>
        </div>

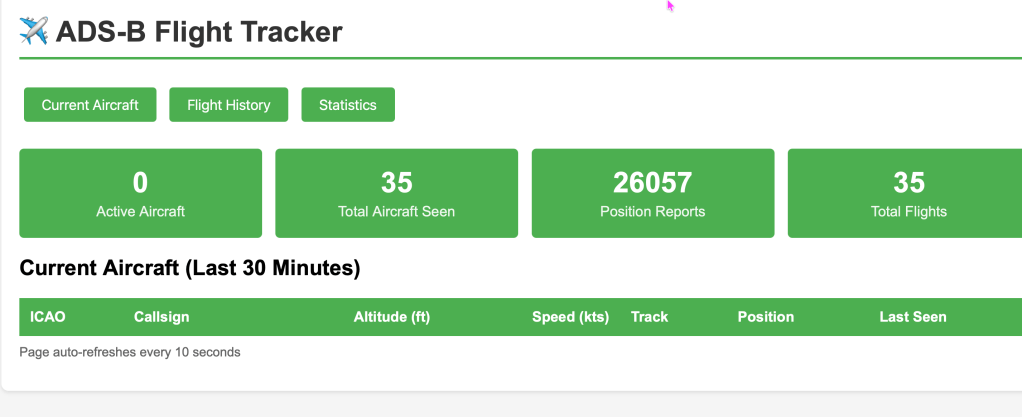

        {% if page == 'current' %}
        <div class="stats">
            <div class="stat-box">
                <h3>{{ stats.active_aircraft }}</h3>
                <p>Active Aircraft</p>
            </div>
            <div class="stat-box">
                <h3>{{ stats.total_aircraft }}</h3>
                <p>Total Aircraft Seen</p>
            </div>
            <div class="stat-box">
                <h3>{{ stats.total_positions }}</h3>
                <p>Position Reports</p>
            </div>
            <div class="stat-box">
                <h3>{{ stats.total_flights }}</h3>
                <p>Total Flights</p>
            </div>
        </div>

        <h2>Current Aircraft (Last 30 Minutes)</h2>
        <table>
            <thead>
                <tr>
                    <th>ICAO</th>
                    <th>Callsign</th>
                    <th class="altitude">Altitude (ft)</th>
                    <th class="speed">Speed (kts)</th>
                    <th>Track</th>
                    <th>Position</th>
                    <th>Last Seen</th>
                </tr>
            </thead>
            <tbody>
                {% for aircraft in current_aircraft %}
                <tr>
                    <td>{{ aircraft[0] }}</td>
                    <td><strong>{{ aircraft[3] or 'N/A' }}</strong></td>
                    <td class="altitude">{{ aircraft[4] or 'N/A' }}</td>
                    <td class="speed">{{ aircraft[5] or 'N/A' }}</td>
                    <td>{{ aircraft[6] or 'N/A' }}°</td>
                    <td>
                        {% if aircraft[7] and aircraft[8] %}
                            {{ "%.4f"|format(aircraft[7]) }}, {{ "%.4f"|format(aircraft[8]) }}
                        {% else %}
                            N/A
                        {% endif %}
                    </td>
                    <td>
                        <span class="{% if aircraft[10] < 5 %}active{% endif %}">
                            {{ "%.1f"|format(aircraft[10]) }} min ago
                        </span>
                    </td>
                </tr>
                {% endfor %}
            </tbody>
        </table>

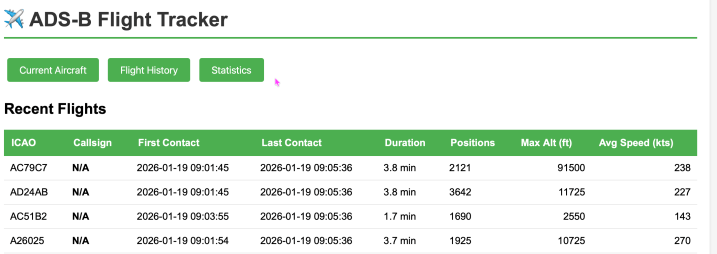

        {% elif page == 'history' %}
        <h2>Recent Flights</h2>
        <table>
            <thead>
                <tr>
                    <th>ICAO</th>
                    <th>Callsign</th>
                    <th>First Contact</th>
                    <th>Last Contact</th>
                    <th>Duration</th>
                    <th>Positions</th>
                    <th>Max Alt (ft)</th>
                    <th>Avg Speed (kts)</th>
                </tr>
            </thead>
            <tbody>
                {% for flight in flights %}
                <tr>
                    <td>{{ flight[0] }}</td>
                    <td><strong>{{ flight[1] or 'N/A' }}</strong></td>
                    <td>{{ flight[2].strftime('%Y-%m-%d %H:%M:%S') if flight[2] else 'N/A' }}</td>
                    <td>{{ flight[3].strftime('%Y-%m-%d %H:%M:%S') if flight[3] else 'N/A' }}</td>
                    <td>
                        {% if flight[2] and flight[3] %}
                            {{ "%.1f"|format((flight[3] - flight[2]).total_seconds() / 60) }} min
                        {% else %}
                            N/A
                        {% endif %}
                    </td>
                    <td>{{ flight[4] }}</td>
                    <td class="altitude">{{ flight[5] or 'N/A' }}</td>
                    <td class="speed">{{ "%.0f"|format(flight[6]) if flight[6] else 'N/A' }}</td>
                </tr>
                {% endfor %}
            </tbody>
        </table>

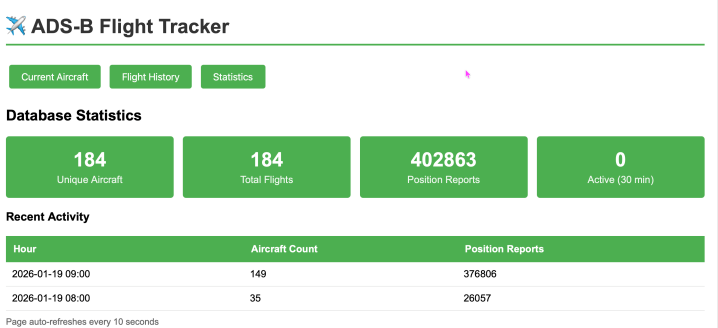

        {% elif page == 'stats' %}
        <h2>Database Statistics</h2>
        <div class="stats">
            <div class="stat-box">
                <h3>{{ stats.total_aircraft }}</h3>
                <p>Unique Aircraft</p>
            </div>
            <div class="stat-box">
                <h3>{{ stats.total_flights }}</h3>
                <p>Total Flights</p>
            </div>
            <div class="stat-box">
                <h3>{{ stats.total_positions }}</h3>
                <p>Position Reports</p>
            </div>
            <div class="stat-box">
                <h3>{{ stats.active_aircraft }}</h3>
                <p>Active (30 min)</p>
            </div>
        </div>

        <h3>Recent Activity</h3>
        <table>
            <thead>
                <tr>
                    <th>Hour</th>
                    <th>Aircraft Count</th>
                    <th>Position Reports</th>
                </tr>
            </thead>
            <tbody>
                {% for hour in hourly_stats %}
                <tr>
                    <td>{{ hour[0].strftime('%Y-%m-%d %H:00') if hour[0] else 'N/A' }}</td>
                    <td>{{ hour[1] }}</td>
                    <td>{{ hour[2] }}</td>
                </tr>
                {% endfor %}
            </tbody>
        </table>
        {% endif %}

        <p class="refresh-info">Page auto-refreshes every 10 seconds</p>
    </div>

    <script>
        // Auto-refresh every 10 seconds
        setTimeout(function() {
            location.reload();
        }, 10000);
    </script>
</body>
</html>
"""
@app.route('/')
def index():
    """Display current aircraft"""
    conn = get_db_connection()
    cursor = conn.cursor()

    # Get current aircraft from view
    cursor.execute("SELECT * FROM v_current_aircraft ORDER BY received_time DESC")
    current_aircraft = cursor.fetchall()

    # Get statistics
    cursor.execute("SELECT COUNT(*) FROM aircraft")
    total_aircraft = cursor.fetchone()[0]

    cursor.execute("SELECT COUNT(*) FROM flights")
    total_flights = cursor.fetchone()[0]

    cursor.execute("SELECT COUNT(*) FROM positions")
    total_positions = cursor.fetchone()[0]

    cursor.execute("""
        SELECT COUNT(DISTINCT icao_address)
        FROM positions
        WHERE received_time > SYSDATE - NUMTODSINTERVAL(30, 'MINUTE')
    """)
    active_aircraft = cursor.fetchone()[0]

    stats = {
        'total_aircraft': total_aircraft,
        'total_flights': total_flights,
        'total_positions': total_positions,
        'active_aircraft': active_aircraft
    }

    cursor.close()
    conn.close()

    return render_template_string(HTML_TEMPLATE,
                                 page='current',
                                 current_aircraft=current_aircraft,
                                 stats=stats)
@app.route('/history')
def history():
    """Display flight history"""
    conn = get_db_connection()
    cursor = conn.cursor()

    # Get recent flights with stats
    cursor.execute("""
        SELECT
            f.icao_address,
            f.callsign,
            MIN(p.received_time) as first_contact,
            MAX(p.received_time) as last_contact,
            COUNT(p.position_id) as position_count,
            MAX(p.altitude) as max_altitude,
            AVG(p.ground_speed) as avg_speed
        FROM flights f
        LEFT JOIN positions p ON f.flight_id = p.flight_id
        GROUP BY f.icao_address, f.callsign
        ORDER BY last_contact DESC
        FETCH FIRST 100 ROWS ONLY
    """)
    flights = cursor.fetchall()

    cursor.close()
    conn.close()

    return render_template_string(HTML_TEMPLATE,
                                 page='history',
                                 flights=flights)
@app.route('/stats')
def stats():
    """Display statistics"""
    conn = get_db_connection()
    cursor = conn.cursor()

    # Get overall stats
    cursor.execute("SELECT COUNT(*) FROM aircraft")
    total_aircraft = cursor.fetchone()[0]

    cursor.execute("SELECT COUNT(*) FROM flights")
    total_flights = cursor.fetchone()[0]

    cursor.execute("SELECT COUNT(*) FROM positions")
    total_positions = cursor.fetchone()[0]

    cursor.execute("""
        SELECT COUNT(DISTINCT icao_address)
        FROM positions
        WHERE received_time > SYSDATE - NUMTODSINTERVAL(30, 'MINUTE')
    """)
    active_aircraft = cursor.fetchone()[0]

    stats_data = {
        'total_aircraft': total_aircraft,
        'total_flights': total_flights,
        'total_positions': total_positions,
        'active_aircraft': active_aircraft
    }

    # Get hourly statistics for last 24 hours
    cursor.execute("""
        SELECT
            TRUNC(received_time, 'HH') as hour,
            COUNT(DISTINCT icao_address) as aircraft_count,
            COUNT(*) as position_count
        FROM positions
        WHERE received_time > SYSDATE - 1
        GROUP BY TRUNC(received_time, 'HH')
        ORDER BY hour DESC
    """)
    hourly_stats = cursor.fetchall()

    cursor.close()
    conn.close()

    return render_template_string(HTML_TEMPLATE,
                                 page='stats',
                                 stats=stats_data,
                                 hourly_stats=hourly_stats)
if __name__ == '__main__':
    print("Starting ADS-B Web Application...")
    print("Open your browser to: http://localhost:5001")
    app.run(host='0.0.0.0', port=5001, debug=True)



Note: I used port 5001 instead of 5000 because macOS uses port 5000 for AirPlay Receiver by default.

Phase 8: Setting Up Oracle 23ai in Docker

Instead of installing Oracle XE locally, I used Oracle 23ai Free in a Docker container:


# Pull Oracle 23ai Free
docker pull container-registry.oracle.com/database/free:latest
# Run the container
docker run -d \
  --name ora23c \
  -p 1521:1521 \
  -p 5500:5500 \
  -e ORACLE_PWD=YourSecurePassword123 \
  -v oracle-data:/opt/oracle/oradata \
  container-registry.oracle.com/database/free:latest
# Wait for database to initialize (watch the logs)
docker logs -f ora23c



Create the database user:

docker exec -it ora23c sqlplus system/YourSecurePassword123@FREEPDB1


CREATE USER adsb_user IDENTIFIED BY "YourSecurePassword123";
GRANT CONNECT, RESOURCE TO adsb_user;
GRANT CREATE VIEW TO adsb_user;
GRANT UNLIMITED TABLESPACE TO adsb_user;
EXIT;



Then connect as the new user and run the schema creation script:

docker exec -it ora23c sqlplus adsb_user/YourSecurePassword123@FREEPDB1

Phase 9: Running the Application

With everything in place, here’s how to run the complete system:

Install Python Dependencies

pip3 install oracledb flask

Start the Data Collector

In one terminal:

python3 adsb_collector.py

You’ll see output like:


ADS-B Data Collector starting...
Connecting to 192.168.10.139:30003
Connected to Oracle Database: localhost:1521/FREEPDB1
Connected to ADS-B feed at 192.168.10.139:30003
Processed 100 messages...
Processed 200 messages...
Committed 200 messages to database



Start the Web Application

In another terminal:

python3 adsb_webapp.py

Then open your browser to: http://localhost:5001

What the Application Shows

Current Aircraft Page

Live view of aircraft detected in the last 30 minutes
ICAO address, callsign, altitude, speed, heading, position
Statistics: active aircraft count, total aircraft seen, position reports collected
Auto-refreshes every 10 seconds

Flight History Page

All tracked flights with detailed statistics
First contact time, last contact time, flight duration
Number of position reports, maximum altitude, average speed
Sorted by most recent activity

Statistics Page

Overall database statistics
Hourly breakdown of aircraft activity
Position report counts by hour

Claude’s Lessons Learned

Oracle INTERVAL types are tricky: The syntax differs significantly from other databases. Use NUMTODSINTERVAL() and EXTRACT() for date/time arithmetic.
Views can’t have ORDER BY: A common mistake. Apply ordering when querying the view, not in the view definition.
The oracledb package has changed: If you’re used to cx_Oracle, the way you handle bind variables with RETURNING clauses is different.
Docker makes Oracle easy: Running Oracle in Docker is far simpler than a local installation, especially on macOS.
Python isn’t so scary: Even for someone who “is crap at coding,” breaking the problem down into small functions makes it manageable.

Future Enhancements

Some ideas for extending this project:

Map visualization: Add Leaflet or Google Maps to plot aircraft positions in real-time
Aircraft database integration: Look up aircraft registration and type from external databases
Alerts: Notify when specific callsigns or aircraft are detected
Flight path replay: Animate historical flight paths
API endpoint: Expose data via REST API for other applications
Mobile app: React Native or Flutter app for viewing data on the go

Conclusion

This project combined my Oracle database expertise with Python programming to create something genuinely useful. The ADS-B data streaming in from my Raspberry Pi is now safely stored in Oracle 23ai, complete with a clean web interface for viewing and querying the data.

The journey from initial concept to working application involved several Oracle-specific challenges, but each error was a learning opportunity. If you’re an Oracle DBA thinking about building applications, don’t let Python intimidate you – start small, Google the errors, and build incrementally.

The complete code is available on my GitHub (link coming soon), and I’d love to hear if anyone builds upon this or adds those future enhancements!

Technical Specifications

Language: Python 3.7+
Database: Oracle 23ai Free (Docker)
Web Framework: Flask 3.0+
Database Driver: python-oracledb 2.0+
Data Source: Flightradar24 ADS-B receiver (BaseStation format, port 30003)
Platform: macOS (but should work on Linux/Windows with minor adjustments)

Happy tracking!

Sage and Pepper's Musings

Life through the eyes of a German Shepherd and her staff.

Building an ADS-B Flight Tracker with Oracle 23ai and Python

Introduction

The Initial Concept

Technology Stack

Phase 1: Database Design

Phase 2: The First Oracle Error – ORA-00932 in Views

Phase 3: The INTERVAL Nightmare

Phase 4: The INTERVAL Arithmetic Problem

Phase 5: Python Data Collector

Phase 6: The getvalue() Error

Phase 7: Flask Web Application

Phase 8: Setting Up Oracle 23ai in Docker

Phase 9: Running the Application

Install Python Dependencies

Start the Data Collector

Start the Web Application

What the Application Shows

Current Aircraft Page

Flight History Page

Statistics Page

Claude’s Lessons Learned

Future Enhancements

Conclusion

Technical Specifications

Leave a comment Cancel reply

Introduction

The Initial Concept

Technology Stack

Phase 1: Database Design

Phase 2: The First Oracle Error – ORA-00932 in Views

Phase 3: The INTERVAL Nightmare

Phase 4: The INTERVAL Arithmetic Problem

Phase 5: Python Data Collector

Phase 6: The getvalue() Error

Phase 7: Flask Web Application

Phase 8: Setting Up Oracle 23ai in Docker

Phase 9: Running the Application

Install Python Dependencies

Start the Data Collector

Start the Web Application

What the Application Shows

Current Aircraft Page

Flight History Page

Statistics Page

Claude’s Lessons Learned

Future Enhancements

Conclusion

Technical Specifications

Share this:

Related

Leave a comment Cancel reply
